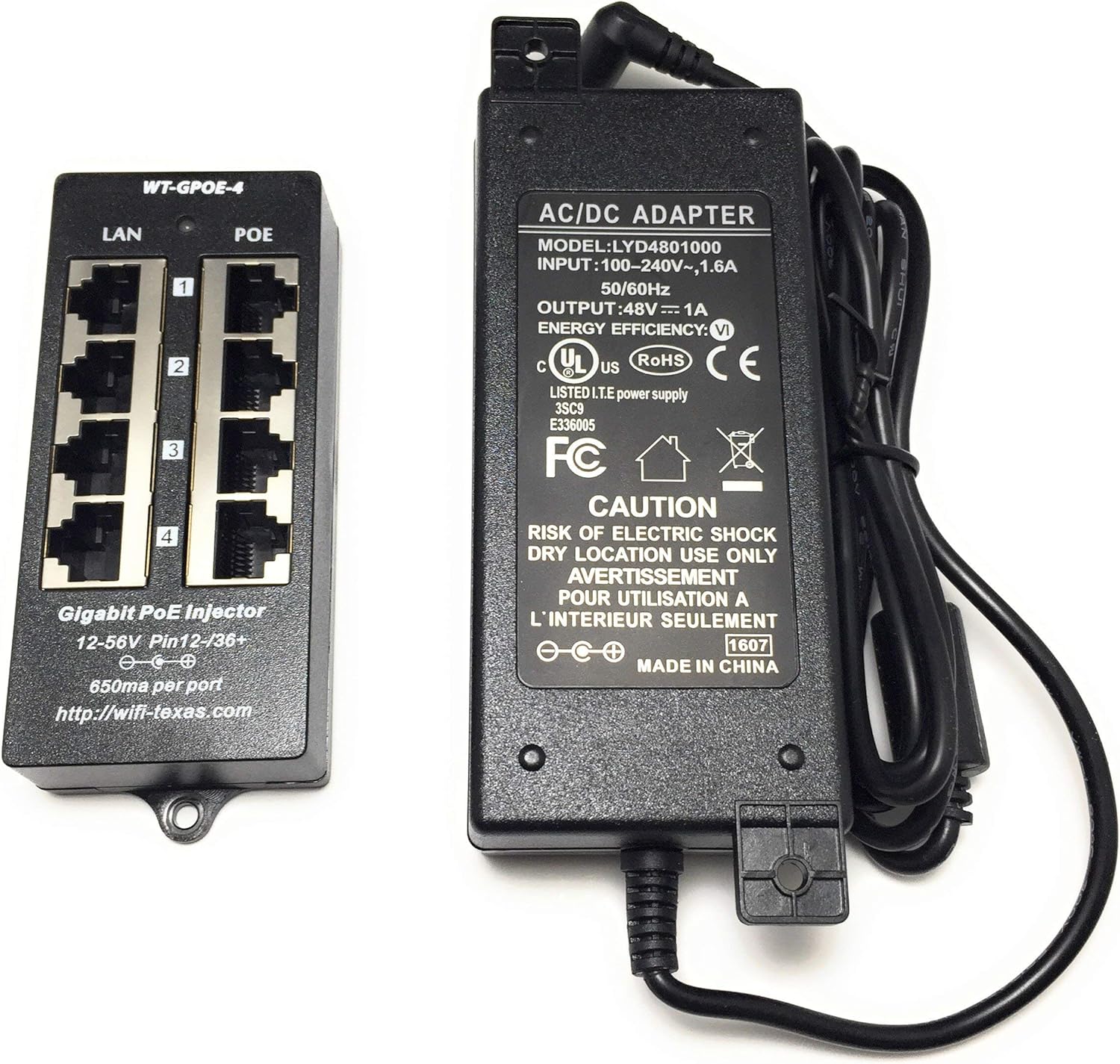

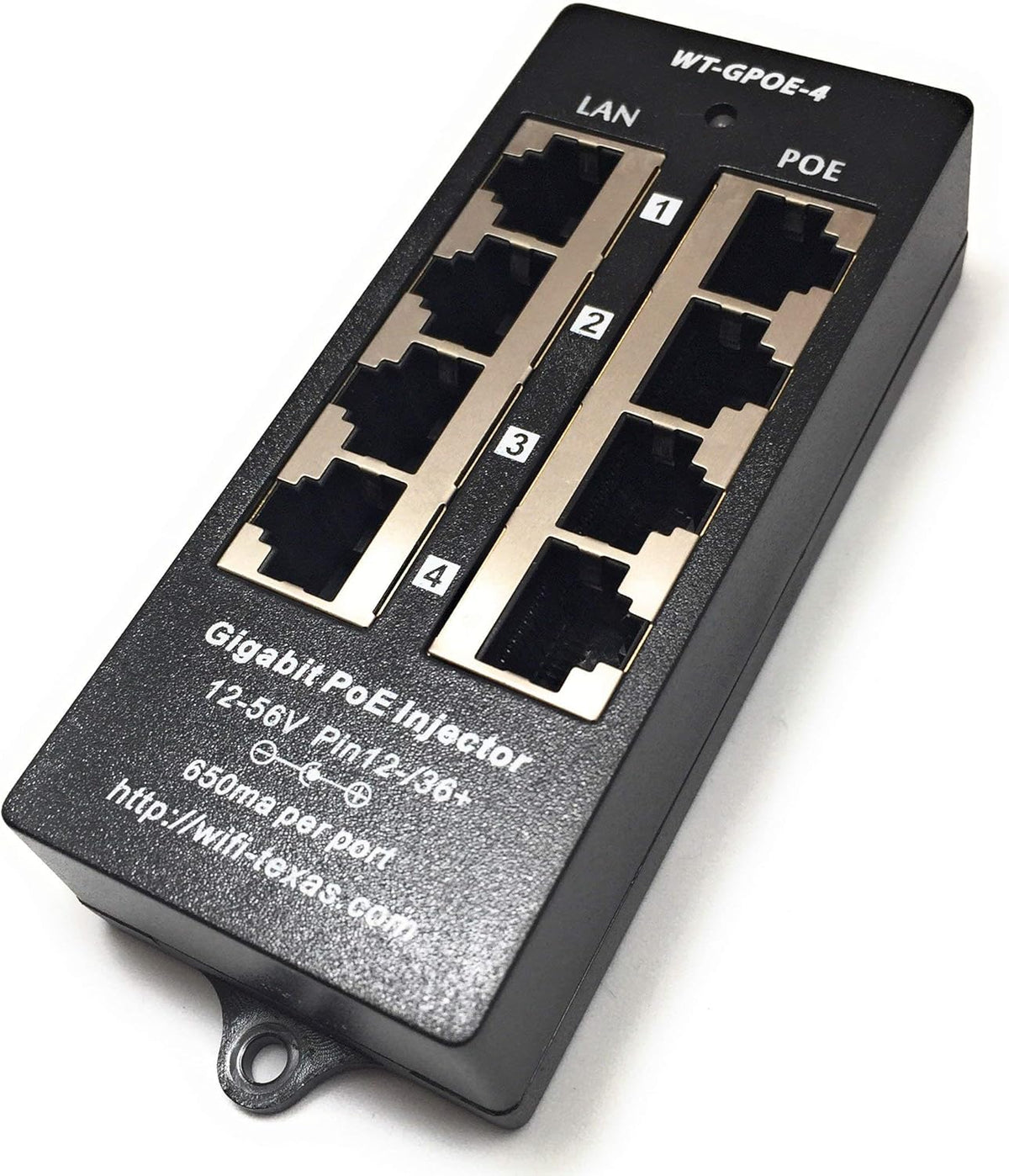

4 Port Gigabit Passive PoE Injector with 48V 48W UL Power Supply Y413

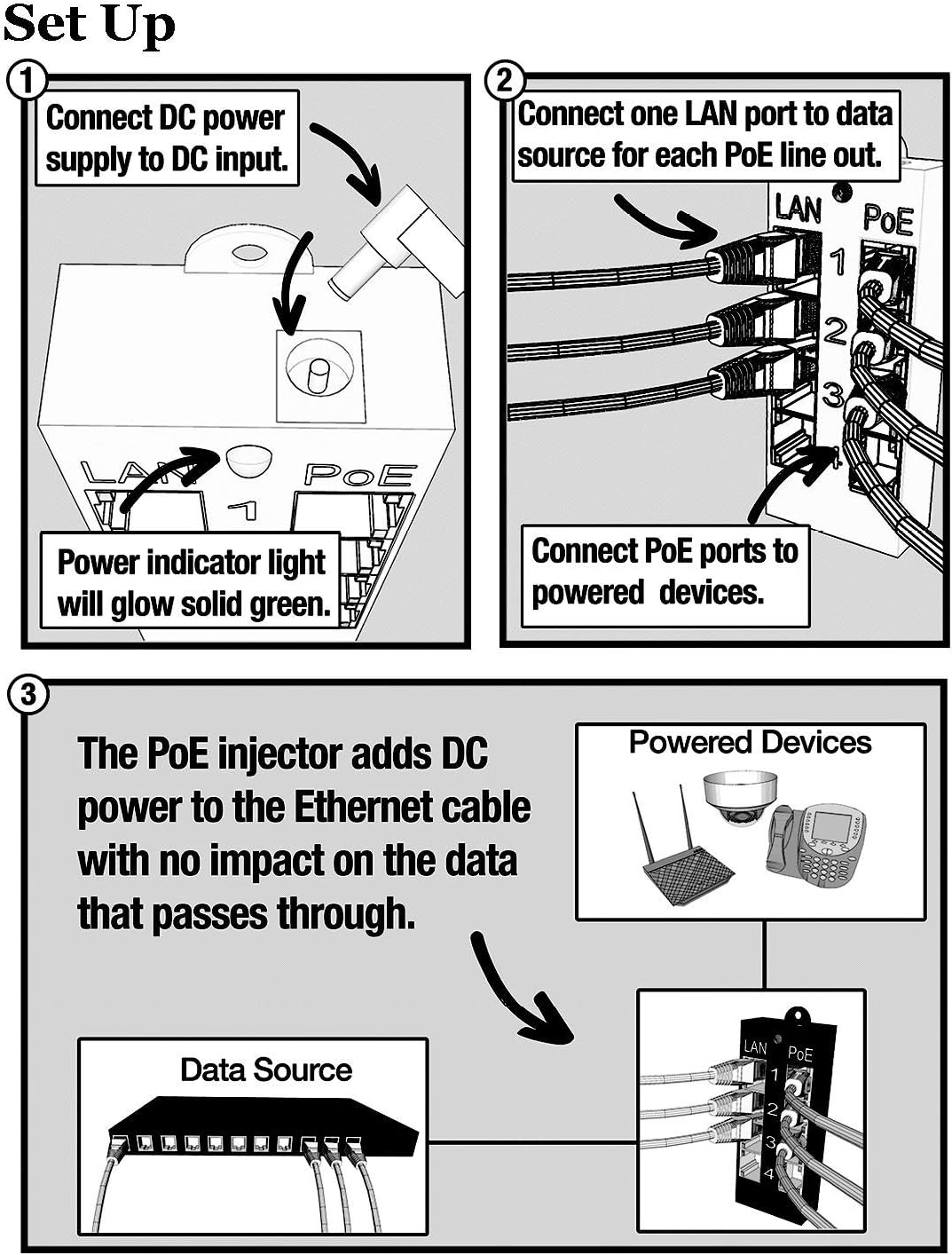

Add gigabit PoE to any Switch. This device combines power with data from your network switch or router on to the Ethernet cable via Mode A (pins 1,2 and 3,6). Passive feature enables all devices to receive the same voltage (48v) at all times. The available power for all devices combined is 48 watts. To calculate power budget, please check device specs for power needs.

Features
Compatible with your 10/100/1000 Gigabit network switch or router
1:1 ratio for LAN to POE ports
Supports up to 4 devices with 48 watts total power
Use to power IEEE 802.3af devices (Or devices labeled '12v,PoE' )
Passive 48v power with up to 48 watts
Shielded RJ45 ports - 4 data (LAN) in, 4 Data + Power (PoE) out
Extend power up to 328 ft (100 meters)
Passive 'always on' 48v power on Mode A

Power supply included
48 volts DC, 1 amp, 48 watts
110 to 220 volt AC operation
90% efficient
UL, CE and FCC approved

Applications:
IP phones
WiFi Access points
IP Cameras
IEEE 802.3af Devices
Devices labeled '12 volt, POE' (please see our video on this topic)
To power PoE Texas' USB, 5v and 12v PoE splitters

Other products from PoE Texas
AT-4-56v120w - 4-port active injector for 802.3at
GPOE-8A-48v60w - 8-Port version with 60 watts of available power
AT-8-56v120w - 8-Port version with Active negotiation for 802.3at
POE-8-48v60w - 8-Port passive injector with 10/100 Mbps data rate
GPOES-8-7AB-48v60w - 8-Port with integrated switch
POE-Tester-GEN2 - Handheld voltmeter to display power used by a device
GAF-5v10w and GAF-12v12w PoE splitters for 5 volt and 12 volt non-PoE devices
