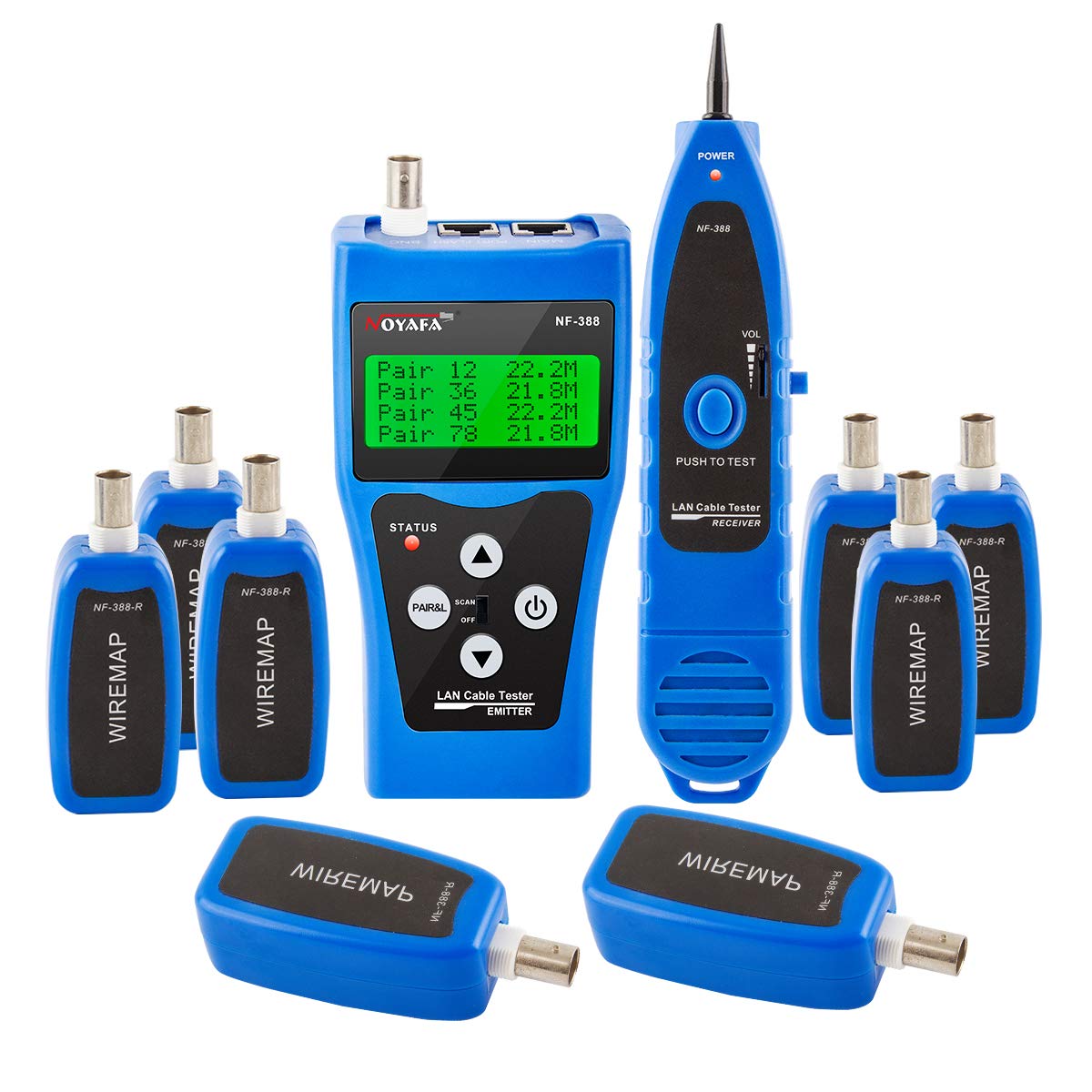

Multipurpose Network Cable Tester with 8 Far-End Jacks A784763
Multipurpose Network Cable Tester with 8 Far-End Jacks A784763
Directly hunt 5E, 6E, telephone wire, coaxial cable, usb cable and other cables
Hub blink for locating network port by the flashing port light on hub/ switch
Check wiring error in 5E, 6E, coaxial cable, such as open, short, cross, ect
Measure cable length and determine the distance of broken point
Testing polarity and voltage
8 remote identifiers help to test 8 cables at one time.
Memory for calibration data storage.
NF-388 Transmitter specification Tone frequency: 455kHz Max. distance of transmission: 2km Max. distance of cable map: 300m Max. working current: 70mA Tone mode: 2 Tones adjustable Compatible connectors: RJ11，RJ45, BNC, USB Max. signal voltage: 15Vp-p Function and faults LCD display：LCD display (wiremap, Tone, short, No adapter, Low battery) Cable map indication: LCD (#1-#8) Shielded indication: LCD ( #G) Battery Type: DC9. 0V x 1pcs Dimension(LxWxD): 185x80x32mm NF-388 Receiver specification Frequency: 455kHz Max. working current: 70mA Battery Type: DC9. 0V x 1pcs Dimension(LxWxD): 218x46x29 mm NF-388 Remote unit specification Compatible connectors: RJ45, BNC Remote identifier: 8pcs Dimension(LxWxD): 107x30x24mm
| Noyafa NF-8601W Ethernet tester with PoE PING | Noyafa NF-868W 4-IN-1 LCD Cable tester | Noyafa NF-388 LCD cable tester | Noyafa NF8108-M Network cable tester | |
|---|---|---|---|---|
| Tracking cable | RJ11+RJ45+BNC | RJ11+RJ45+BNC+USB | RJ11+RJ45+BNC+USB | X |
| Measure cable length | RJ11+RJ45+BNC | RJ11+RJ45+BNC+USB | RJ45 | RJ45 |
| Check cable errors | RJ11+RJ45+BNC | RJ11+RJ45+BNC+USB | RJ45+BNC | RJ45 |
| POE Detecting | ✓ | X | X | X |
| PING Function | ✓ | X | X | X |
| AC Voltage detector | ✓ | X | X | X |
| Data exported to PC | ✓ | X | X | X |
| AC fliter | ✓ | ✓ | X | X |
| Power supply | 3.7V Lithium battary | 9V Battary | 9V Battary | 1.5V AA Battary |
