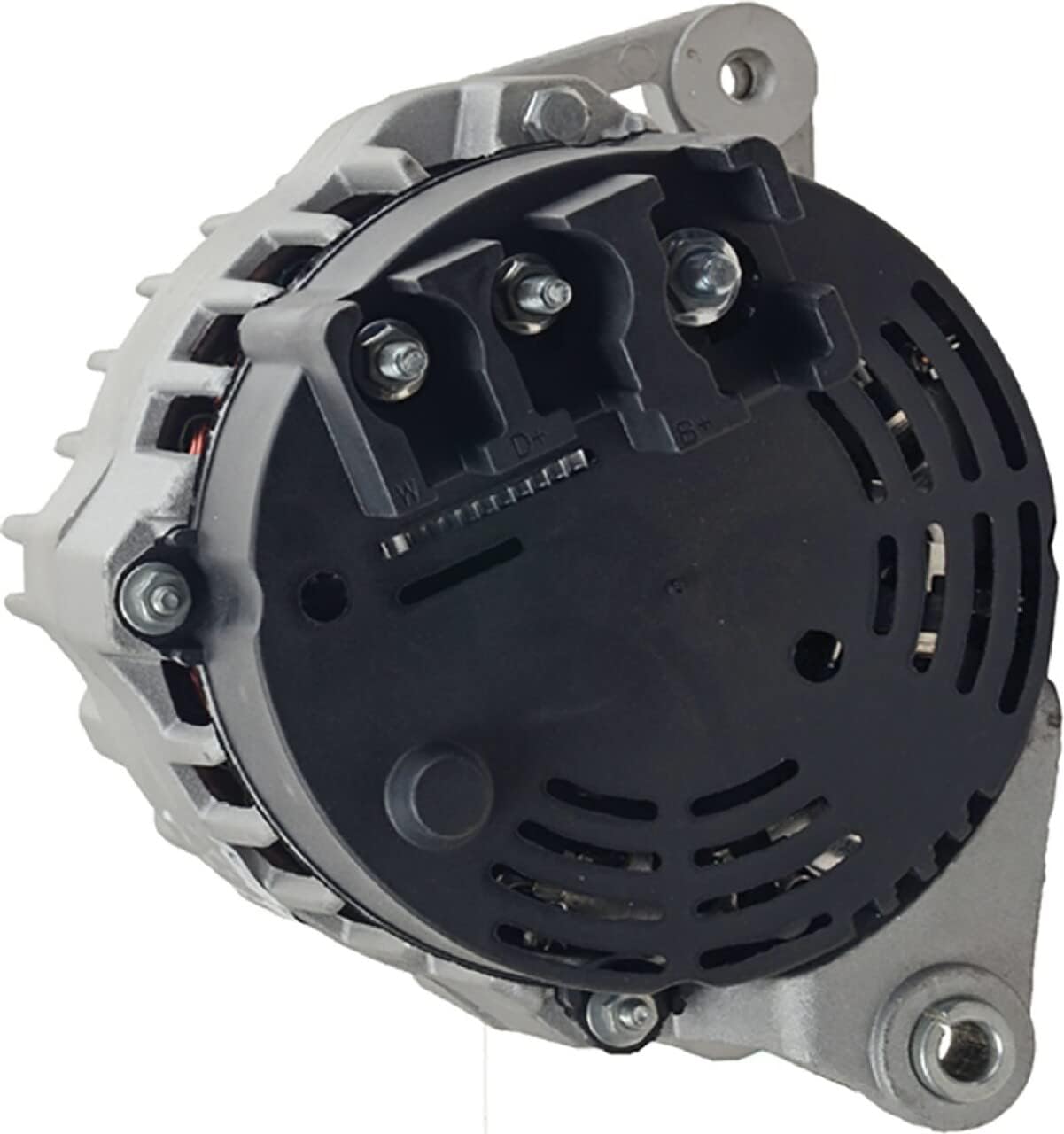

Alternator D5242
Alternator D5242
New Aftermarket Part (Not Rebuilt/Refurbished/Repurposed)
Specs: Alternator, Voltage: 12, Amps: 85, Mtg Ear 1 Hole: M8x1.25 Threaded, Mtg Ear 2 Hole: 8.4mm Unthreaded, Mtg Ear 3 Hole: 8.4mm Unthreaded, Mtg Ear 1 Thickness: 0.551in / 14mm, Mtg Ear 2 Thickness: 0.551in / 14mm, Fan Location: Internal, Regulator Location: Internal, B+ Terminal: M6x1.00, D+ Terminal: M5x0.8, W Terminal: M5x0.8, Polarity: Negative
Replaces OEM Part Numbers: Caterpillar: 305-3661, Denso: 102211-8180, Iskra: IA1204, Lester: 12550, Lucas: 24344, 24481, 24479, 24480, 24481, Magneti Marelli: 063377462010, 54022468, 63321466, 63377462, AMR677, Perkins: 185046522, 2871A168, 2871A303, TPN758, 185046522, 2871A303, 185046500, 2871A301, 2871A302, 63377462, MAN7462, 63377461, MAN7461, 63377460, MAN7460, JCB: 714/32200, 71440154, 71440152, 71440153, Nippondenso: 102211-8180, 102211-8160, 102211-8170, IAT: AM7460, AM7461
Please verify this is the right part number before ordering
Compatible with
This is a Brand New Alternator for Caterpillar, JCB, and Perkins
Models:
Caterpillar and JCB With Perkins Engines
Replaces:
CATERPILLAR
305-3661
JCB
714/32200, 71440154, 71440152JCB, 71440153
LUCAS
24479, 24480, 24481, 24344
MARELLI
063377462010, 54022468, 63321466,
63377462, AMR677, 63377461, MAN7461,
63377460, MAN7460, 63377462, MAN7462
NIPPONDENSO
102211-8160, 102211-8170, 102211-8180
PERKINS
185046522, 2871A303,
TPN758, 185046500, 2871A301, 2871A302,
185046522, 2871A168, 2871A303, TPN758
OEM(s): Magneti Marelli, Perkins
Alternator Family: Lucas A115
Voltage: 12 Volts
Amps: 85 Amps
Polarity: Negative
Output Stud Dimensions: M6-1.0
Reg. Location: Internal
Fan Location: Internal
Approximate Weight: 10.85 lbs / 4.93 kg
Notes:
Side DE Mounting Ear M8-1.25 ID Threaded,
Bottom Mounting Ears 8.4mm ID Unthreaded,
W & D+ Terminals M5-0.8 Threaded
